New 3w RGB Projector Build

[andy_con]

It is indeed can't wait to get it wired up later

[andy_con]

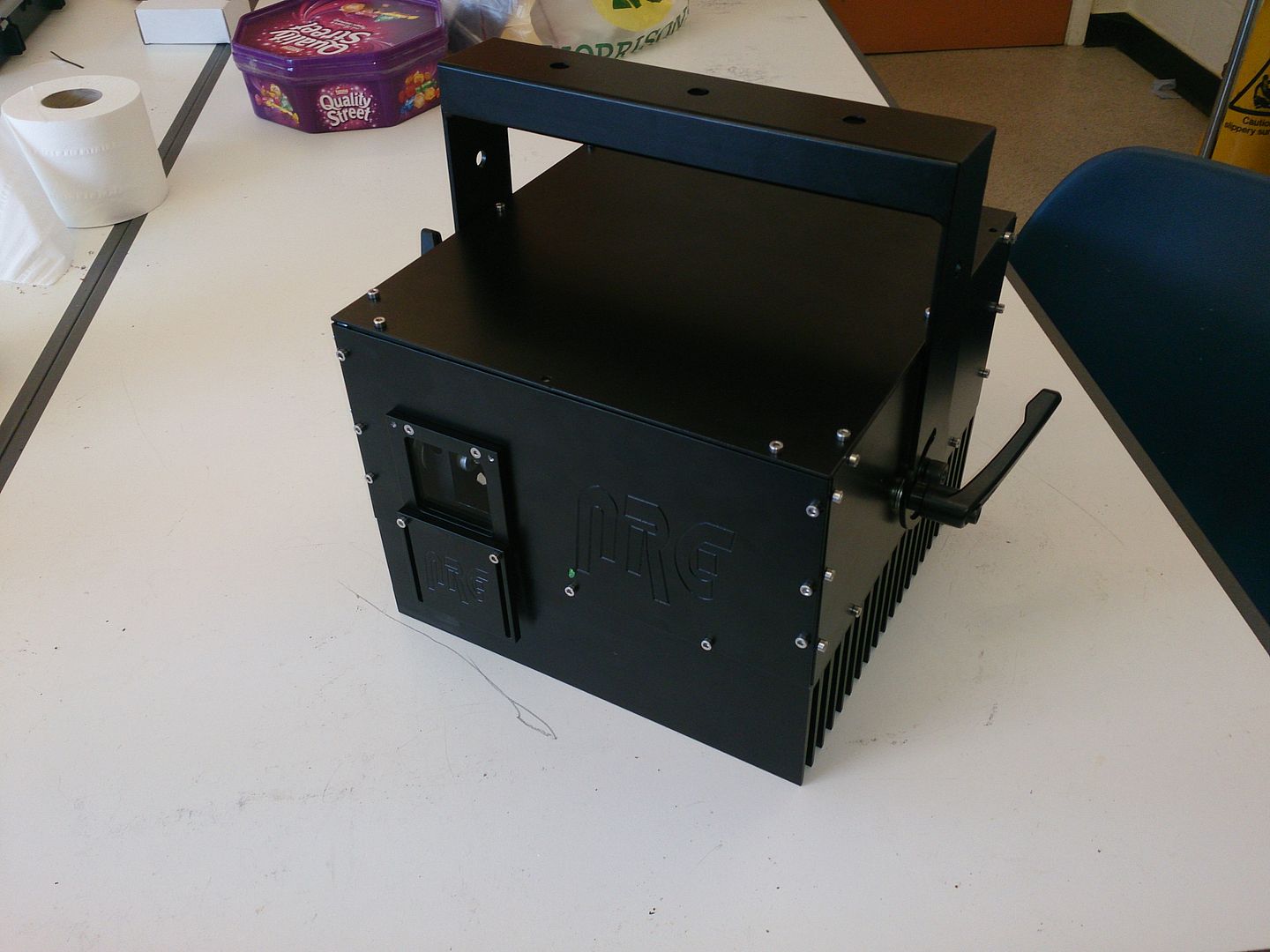

Finished

[steviobee]

..... and very nice beam quality too, nice build!

[White-Light]

Sweet Andy. Very nice looking projector.

[planters]

Andy,
Very well done indeed! Up to the electronics, I would just say "good job, interesting fan installation and efficient lay out". But, what is that display/electronic board and all those temp readings?! I haven't seen that before and I REALLY like it.

[andy_con]

Andy,
Very well done indeed! Up to the electronics, I would just say "good job, interesting fan installation and efficient lay out". But, what is that display/electronic board and all those temp readings?! I haven't seen that before and I REALLY like it.

there are 4 temp sensors in the projector, one on each module and one on the base plate. when the base plate gets to 28 degrees it triggers the fans

its just so you can monitor each module to make sure its ok and so the fans aren't on all the time

- - - Updated - - -

thanks alan and steve

[andy_con]

the beams are very well matched

[Galvonaut]

That looks fab Andy! Good work

[Pockels]

Nice!!

You may now assume the title of 'King of Alignment'

Of course I'll be asking for your services at the next LEM

[andy_con]

i wouldn't go that far, play your cards right and I might help you treacle
