My Tiny Tiny 1watt RGV build

[andy_con]

nice one andy will it be ready for the next lem
i would worry about using a lasever in such a small case they do chuck out a lot of heat. i had enough trouble keeping the 300mw one i had running properly because of heat problems

it will be ready for the next meet but about 2 hours after making this post someone PM'ed me with a view to buying it, so i may not have it by then.

thats strange ive got a 500mw lasever green and it gives out no heat whatsoever. in fact ive got a 500mw green, 350mw 635 and 100mw 473nm all next to each other and none give off any heat at all.

wonder if something was up with your one?

[badger1666]

good point andy i had never had a lasever before i just thought it was normal for them ,it only run in tem01 as well ,
thanks

[andy_con]

normal quality product from lasever!! such a shame as i wana love lasever products due to their size but the quality is poor

[andy_con]

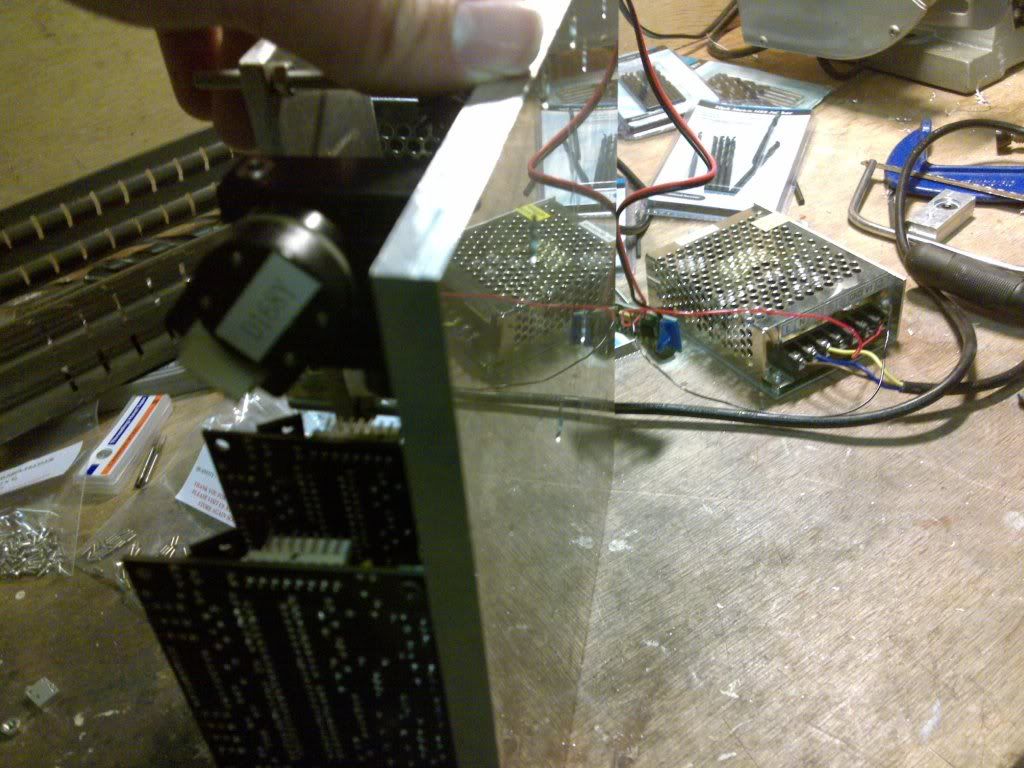

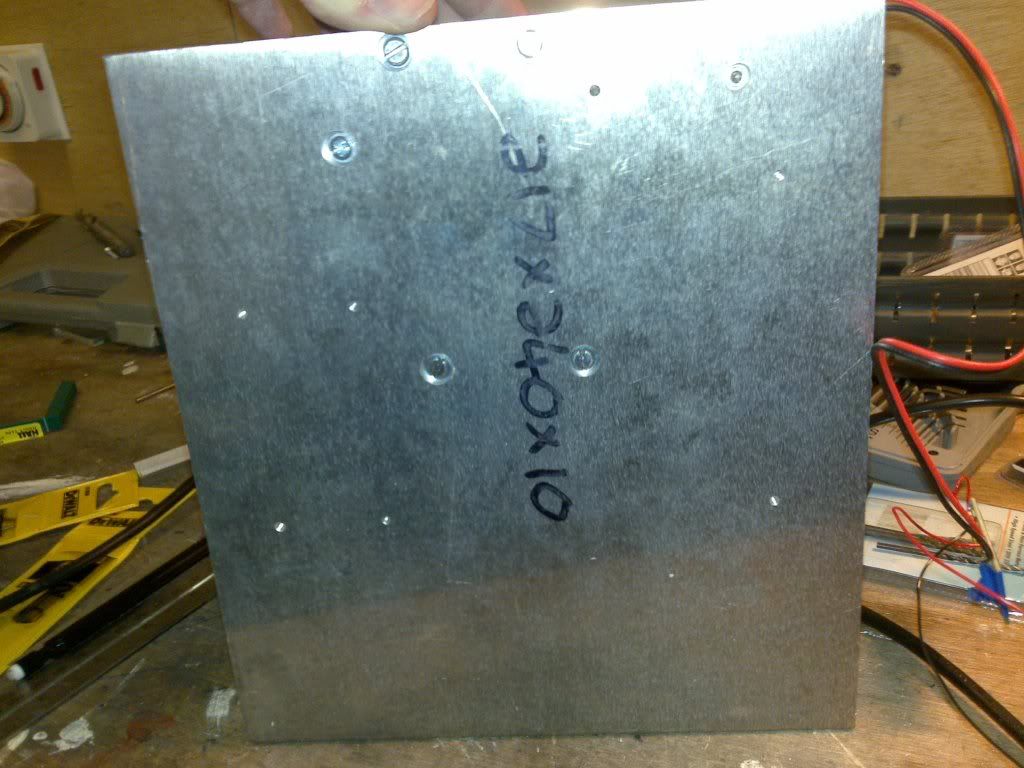

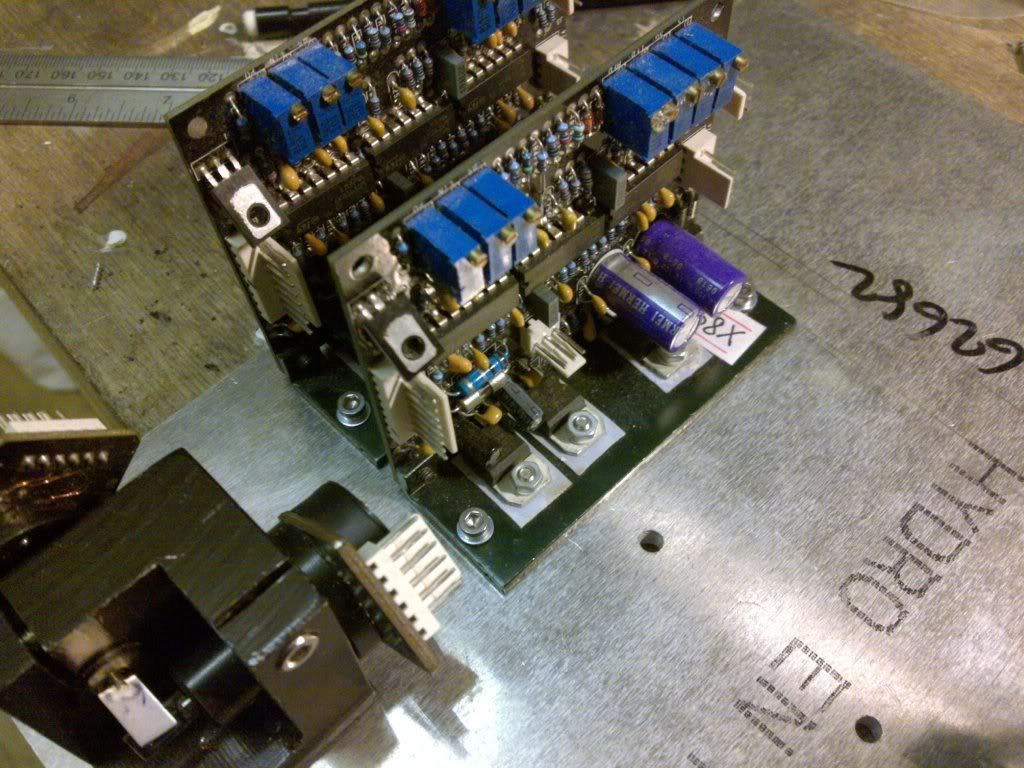

a few more pics, all holes are tapped for allen key screws and all holes are sunken.

rob had a little moan at me at the last surfleet meet saying learn how to tap threads. well here you go rob advice taken

[andy_con]

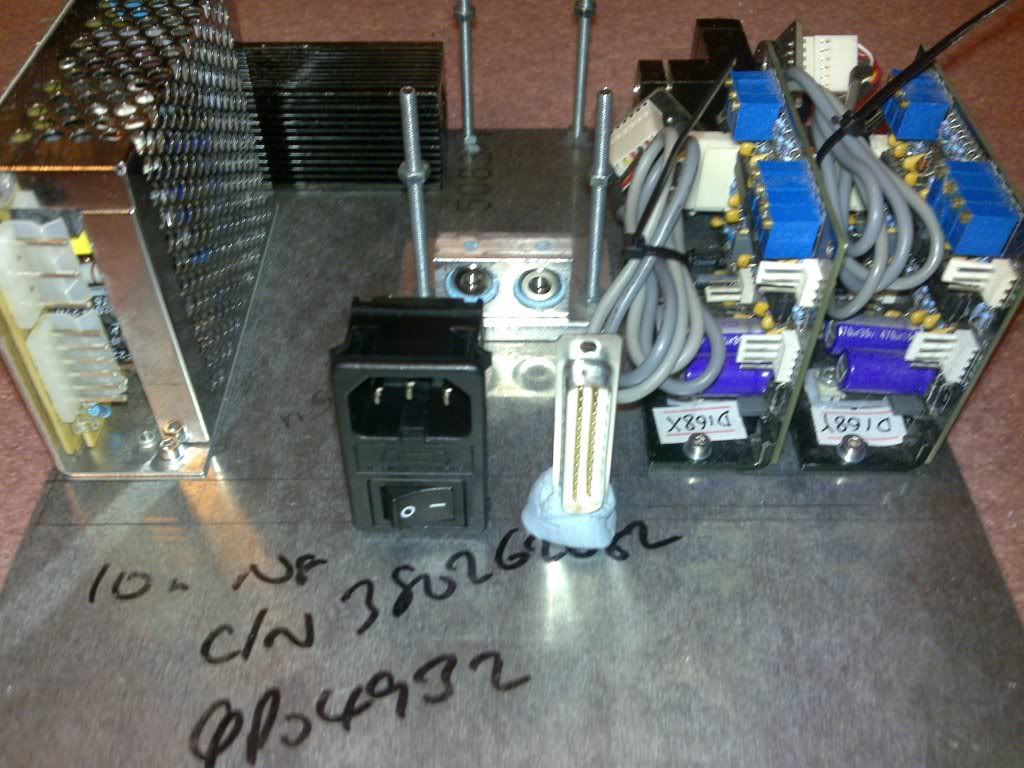

im going to have to mount the mains in socket and the ilda input very very close together in this projector. ive never put them this close before am i going to encounter any issues??

[allthatwhichis]

They seem that close in mine, just not at the same angle.

[andy_con]

umm very true, guessing that anwsers the question then.

[hobbybob]

Hi Andy,

What diodes you are using to get 275mW of red ? Are those the Long Open Cans ?
And at what amperage do you drive them ?

[andy_con]

yeah long open can reds, dont know the ma off the top of my head

[300EVIL]

You need to isolate that green head from ground or you'll kill it.
