New Laser today from Laserwave. need help

[ExideGlow]

have the card form DZ DB-25. And im using mamba black.

when I draw only one blue point, the green will not shut off. the same if I make a green point so blue will not turn off.

and if I make something that's red, the green and blue laser do not want to turn off. but i can adjust the strength.

I have measured the db 25 break out board. and blue + is 7 pin and the - are at pin 19 and for the green + 8 and - at 20 is that right ?

I measure all outputs. with a multimeter. and the USB DAC is sending out 4.5 volts for red green and blue. but I only drawing a green line. should not the blue and red be turned off ?

[DZ]

Hey ExideGlow! Do you have it wired like this:


The color lines should be:
pin 5 - RED
pin 6 - GREEN
pin 7 - BLUE

Do you have the -R, -G and -B lines connected? If so, that tells me that mamba may not have a true ILDA output. If you do have -R, -G and -B lines connected, you might try turning on switches 3,4 and 5. This will send -R, -G and -B to ground.

[ExideGlow]

I have G - and B- connected. but i dont have red laser.

but if i using the multimeter pip functions i find the green + at pin 8 and - at 20

[DZ]

That would make sense if you were counting from the wrong side of the connector. Here's a pinout of a DB-25, are we talking about the same pins/numbers?

[ExideGlow]

That would make sense if you were counting from the wrong side of the connector. Here's a pinout of a DB-25, are we talking about the same pins/numbers?

yes thats right. but i dont think the db-25 card is the problem. the usb dac is not turn the power off, on R+ and G+ if i only doing a blue point or a blue circle. and same if i make a green circle the blue and red has the same Volt as the green.

[DZ]

Hmm, interesting. Did you make the ilda cable that connects between your DAC and projector? Any changes if you turn on switch 3,4 and 5 on the breakout board?

yes thats right. but i dont think the db-25 card is the problem. the usb dac is not turn the power off, on R+ and G+ if i only doing a blue point or a blue circle. and same if i make a green circle the blue and red has the same Volt as the green.

[ExideGlow]

Hmm, interesting. Did you make the ilda cable that connects between your DAC and projector? Any changes if you turn on switch 3,4 and 5 on the breakout board?

nope. I bought it. and i do not use it now. and no changes if i turn down the 3.4.5.

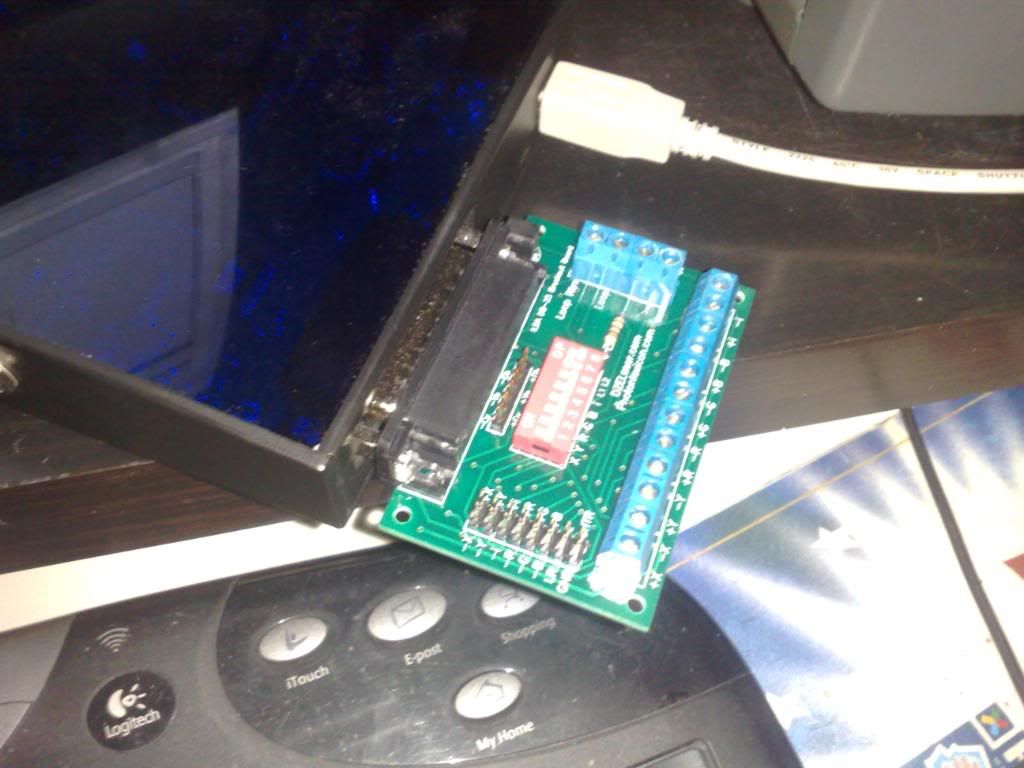

i will take a picture

[DZ]

Ok cool, a pic may certainly help! That's wierd, are there settings in mamba to route colors to certain lines?

[ExideGlow]

[ExideGlow]

Ok cool, a pic may certainly help! That's wierd, are there settings in mamba to route colors to certain lines?

im new at mamba but there are som colors settings. i will take a screenshot.
